Safes and safety cabinets

PRIVACY - Wall safes - with mechanical combination lock

  • Case:

    2 mm thick steel.

  • Fins:

    steel on all rear sides ("L" shaped folded fins on both horizontal sides) of the case, to increase resistance to attack.

  • Frame:

    10 mm thick steel. Specially rebated steel around the entire internal frame perimeter to increase resistance to attack. The frame forms a one-piece body with the case, thanks to the sturdy welding around the entire perimeter.

  • Door:

    10 mm thick steel, banded on the hinge side to increase pull-resistance. Minimum space between door and frame to prevent insertion of burglary tools.

  • Hinges:

    20 mm side reinforced steel, fixed with Ø 8 mm steel pins.

  • Dead-bolts:

    horizontal and vertical (when present) rotating and resistant to attack nickel-plated steel dead-bolts, Ø 18 or 22 mm.

  • Mechanism:

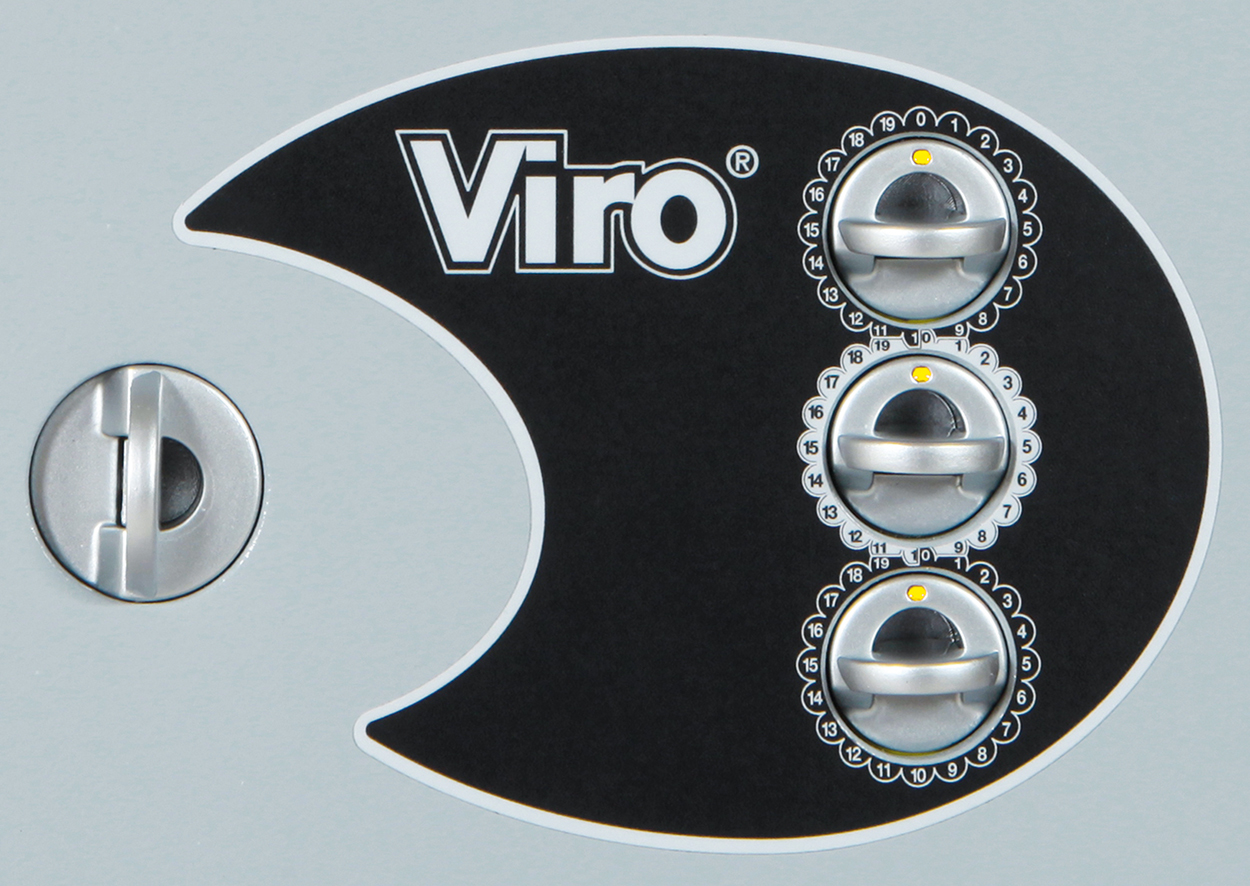

    • steel lock, operated by the thumb turn and by 3 chrome-plated mechanical combination locks, each one with 20 positions;
    • the thumb turn and combination locks are controlled by handy fold-away grips, combining maximum practicality with minimum projection; in the fold-away position they are perfectly flush with the door;
    • the attractive sticker shows the positions of each combination lock and, together with the precision of the mechanism, makes the safe very easy to use;
    • the code can only be changed when the door is open.
  • Supplied with:

    1 mm thick painted steel removable shelf.

  • Packaging:

    Personalized single box.

  • On request:

     (photos and details of the accessories):

    • inside lighting module (item 1.4383.0312) that lights up when the door is opened, for easy identification of small items inside the safe.
HORIZONTAL WALL VERSIONS WITH MECHANICAL COMBINATION LOCK



Item

External dimensions

Useful internal dimensions

Door clearance

Bottom dimensions

Thickness

Frame

Thickness

Door

Thickness

Case

Dead-bolts

Horiz.

Dead-bolts

Vert.

Unit weight



No.

mm

height x width x depth

mm

height x width x depth

mm

height x width

mm

height x width

mm

mm

mm

No.

No.

kg

   1.4322.20200 x 310 x 200182 x 292 x 148140 x 250228 x 330101022-12.3
   1.4323.20240 x 360 x 200222 x 342 x 148180 x 300268 x 380101022-16
   1.4324.20300 x 420 x 200282 x 402 x 148240 x 360328 x 440101022222
