Hardware Products

Safes and safety cabinets

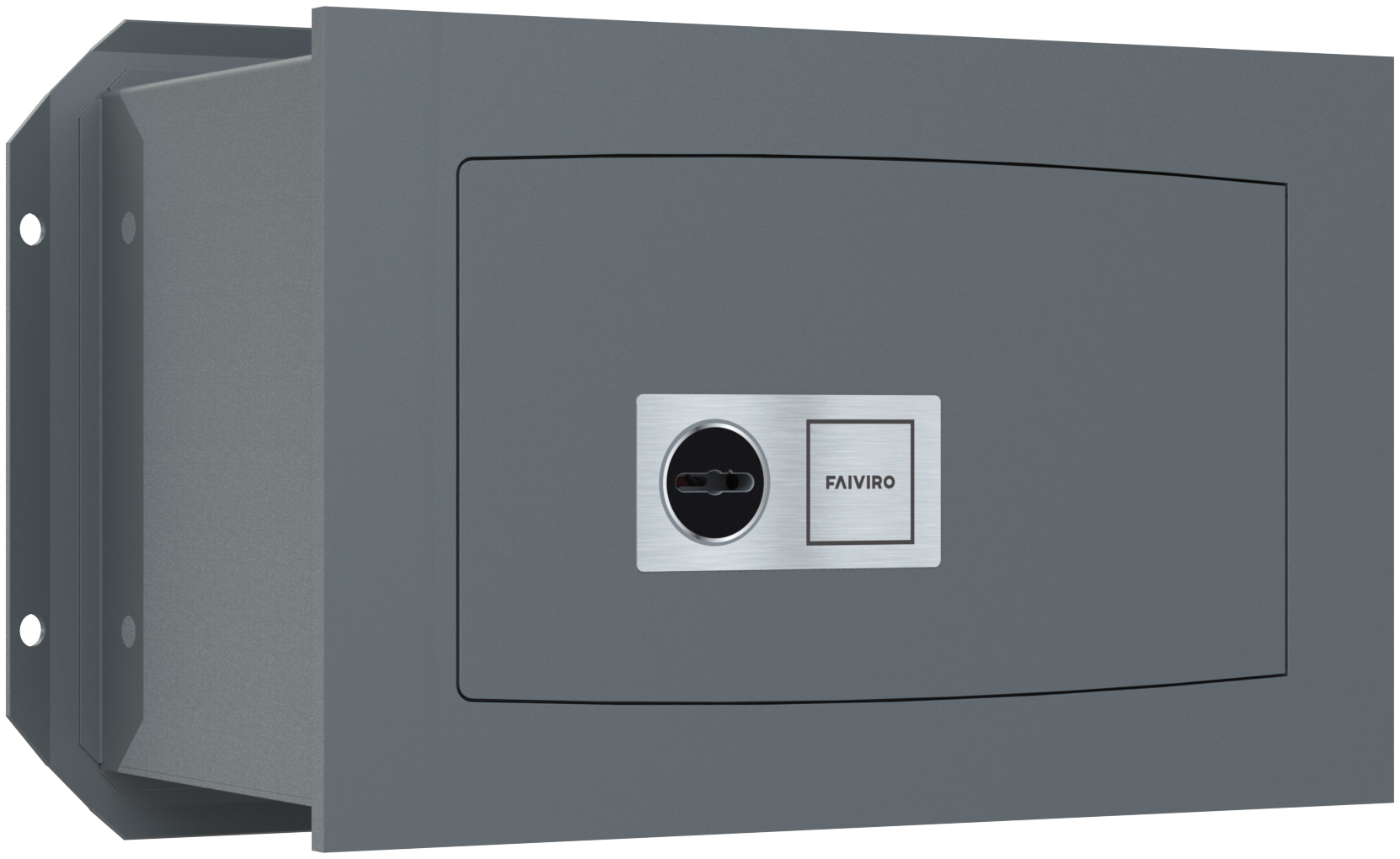

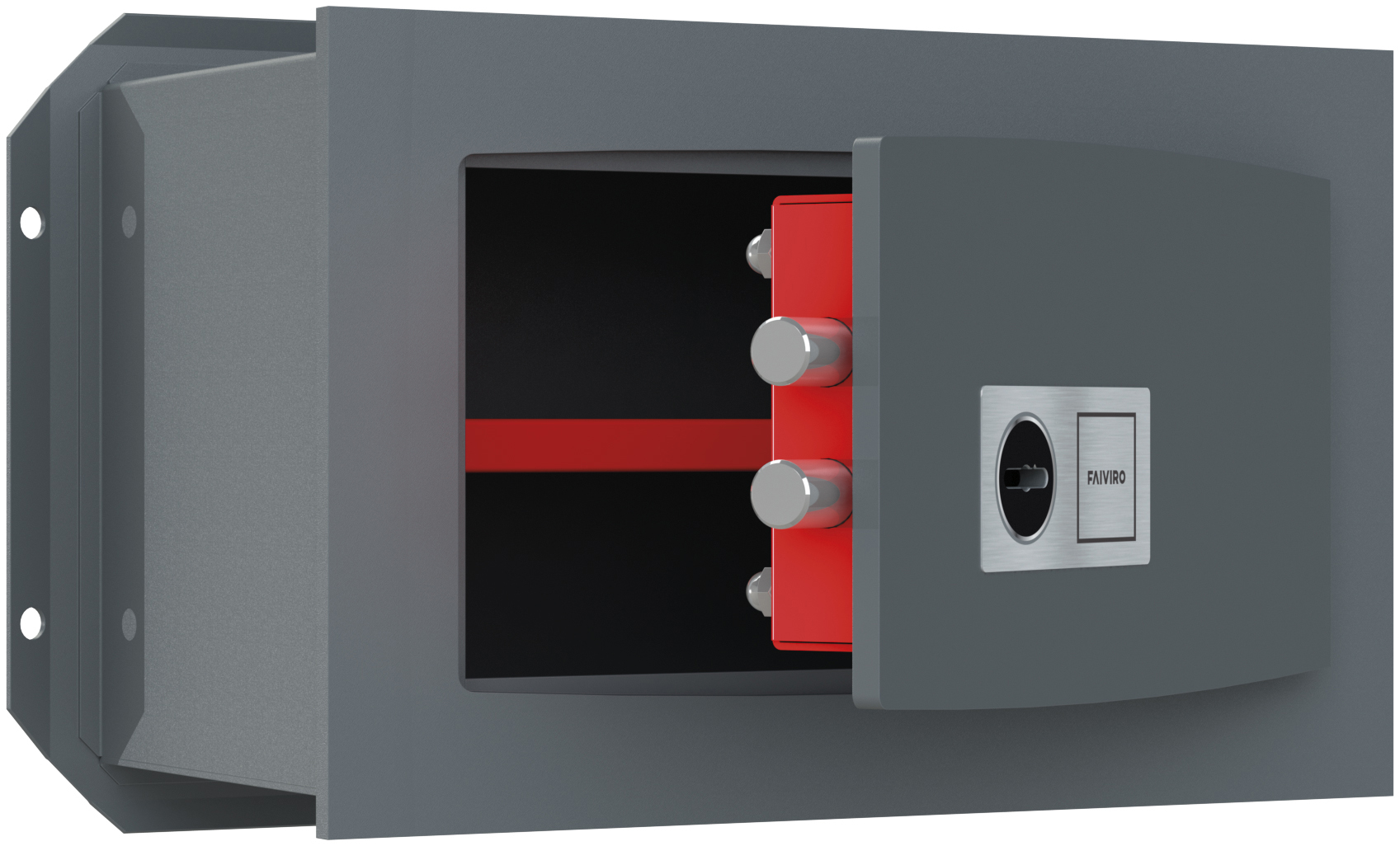

FAIVIRO MECHANICAL SAFES - Wall safes

  • Case:

    2 mm thick steel.

  • Fins:

    in steel on all rear sides of the case, folded with pull-resistant function.

  • Frame:

    in 8 mm thick steel. Special anti-break-in rebated steel around the entire internal perimeter of the frame. The frame creates a single body with the case.

  • Door:

    in 8 mm thick steel. The space between the door and the frame is minimal and does not allow introducing burglary tools. "Full-compartment" opening.

  • Hinges:

    consisting of a folded 4 mm thick steel plate, welded to the door and fixed to the frame with a Ø 13 mm steel pin.

  • Dead-bolts:

    horizontal and vertical (when present) rotating, nickel-plated steel, Ø 18 or 22 mm, resistant to attack.

  • Keys:

    nickel-plated zamak, with double bit keys, 2 supplied (item 1.077). Keys removable only when the door is closed.

  • Mechanism:

    6 gorges steel lock with different, independent depth. Numerous bitting possibilities.

  • Supplied with:
    • 1,2 mm thick painted steel removable shelf (except for items no. 4511.15 and 4512.20);
    • grey carpet mat.
  • Packaging:

    single box.

  • On request:

    (photos and details of the accessories)

    • inside lighting module (item 1.4383.0312) that lights up when the door is opened, for easy identification of small items inside the safe.
FAIVIRO BUILT-IN-WALL VERSION MECHANICAL SAFES
Item

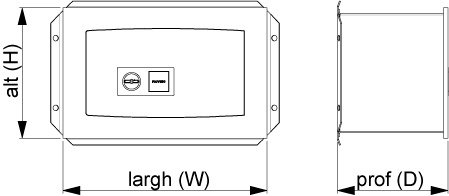

External dimensionsUseful internal dimensions

Door clearance

Bottom dimensions

Thickness Frame

Thickness Door

Thickness Case

Dead-bolts Horiz.Dead-bolts Vert.Unit weight

No.

mm

H x W x D

mm

H x W x D

mm

H x W

mm

H x W

mm

mm

mm

No.

No.

kg

  4511.15180 x 260 x 150156 x 236 x 95120 x 185205 x 3058822-6,5
  4512.20210 x 310 x 195186 x 286 x 140136 x 228235 x 3558822-9,0
  4513.20230 x 360 x 195206 x 336 x 140156 x 278255 x 4058822-12,0
  4514.20280 x 400 x 195256 x 376 x 130206 x 318305 x 4458822215,5
  4515.20360 x 490 x 200336 x 466 x 135266 x 388385 x 5358823223,0
