Safes and safety cabinets
- MECHANICAL FEATURES:
- Case:
2 mm thick steel.
- Fins:
steel on all rear sides ("L" shaped folded fins on both horizontal sides) of the case, to increase resistance to attack.
- Frame:
10 mm thick steel. Specially rebated steel around the entire internal frame perimeter to increase resistance to attack. The frame forms a one-piece body with the case, thanks to the sturdy welding around the entire perimeter.
- Door:
8 mm thick steel, banded on the hinge side to increase pull-resistance. Minimum space between door and frame to prevent insertion of burglary tools.
- Hinges:
20 mm side reinforced steel, fixed with Ø 8 mm steel pins.
- Dead-bolts:
horizontal rotating resistant to attack and vertical (when present) nickel-plated steel, all with double guides, Ø 20 mm.
- Thumb turn:
non-slip ABS with programmed breakage steel shaft: if forced, the thumb turn will break but not the mechanism, leaving no space for access by burglary tools.
- Mechanism:
- steel internal components, without plastic parts, to ensure maximum resistance to attack
- electromagnet (activator) protected by a steel plate;
- open/close control microswitch of the door;

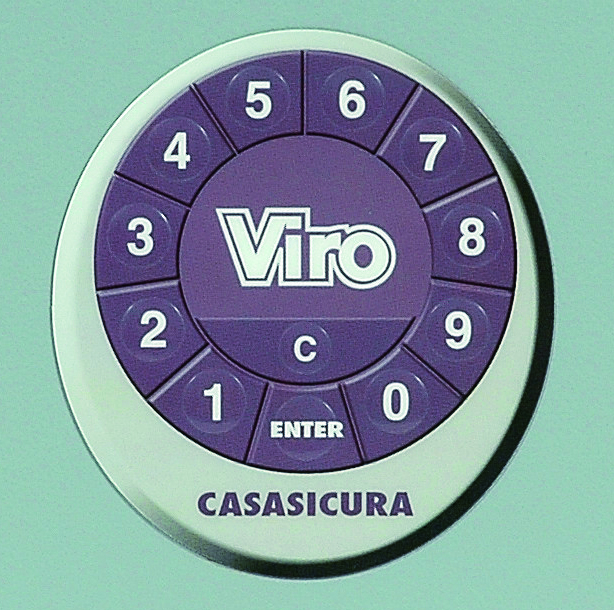

- the layout of the keys limits typing errors;

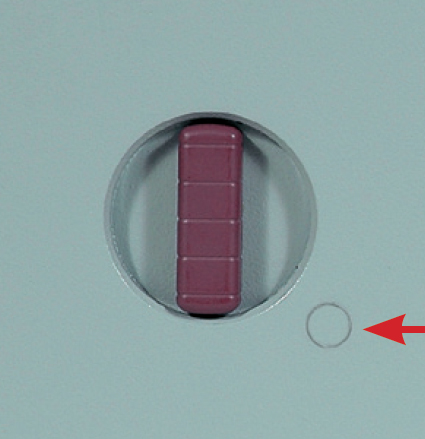

- emergency cylinder protected by a tempered and nickel-plated steel plate; supplied with 2 disc keys for emergency opening (item 052), in a sealed envelope.
- ELECTRONIC FEATURES:
- Power supply:
low consumption technology (4 alkaline 1.5 Volt batteries) to extend battery life to a maximum (up to 10,000 operations with the same set of batteries).
- Electronic board :
protected against break-in attempts by high voltage electric shocks and against incorrectly inserted batteries (the electronic boards of most safes on the market are seriously damaged by incorrect battery insertion).
- Connectors:
optimized number to maximize board reliability.
- Non-volatile memory:
stored code is not erased if the batteries are removed.
- Acoustic signals:
indicating: correct operation; new code entry; incorrect operation; battery low.
- Combinations:
accepts codes from 3 to 8 digits (100 million possible combinations). The code can only be changed when the door is open, using the C key on the keypad (in a position where it can not be pressed by mistake).
- Supplied with:
1 mm thick painted steel removable shelf.
- Packaging:
Personalized single box.
- On request:
(photos and details of the accessories):
- inside lighting module (item 1.4383.0312) that lights up when the door is opened, for easy identification of small items inside the safe.

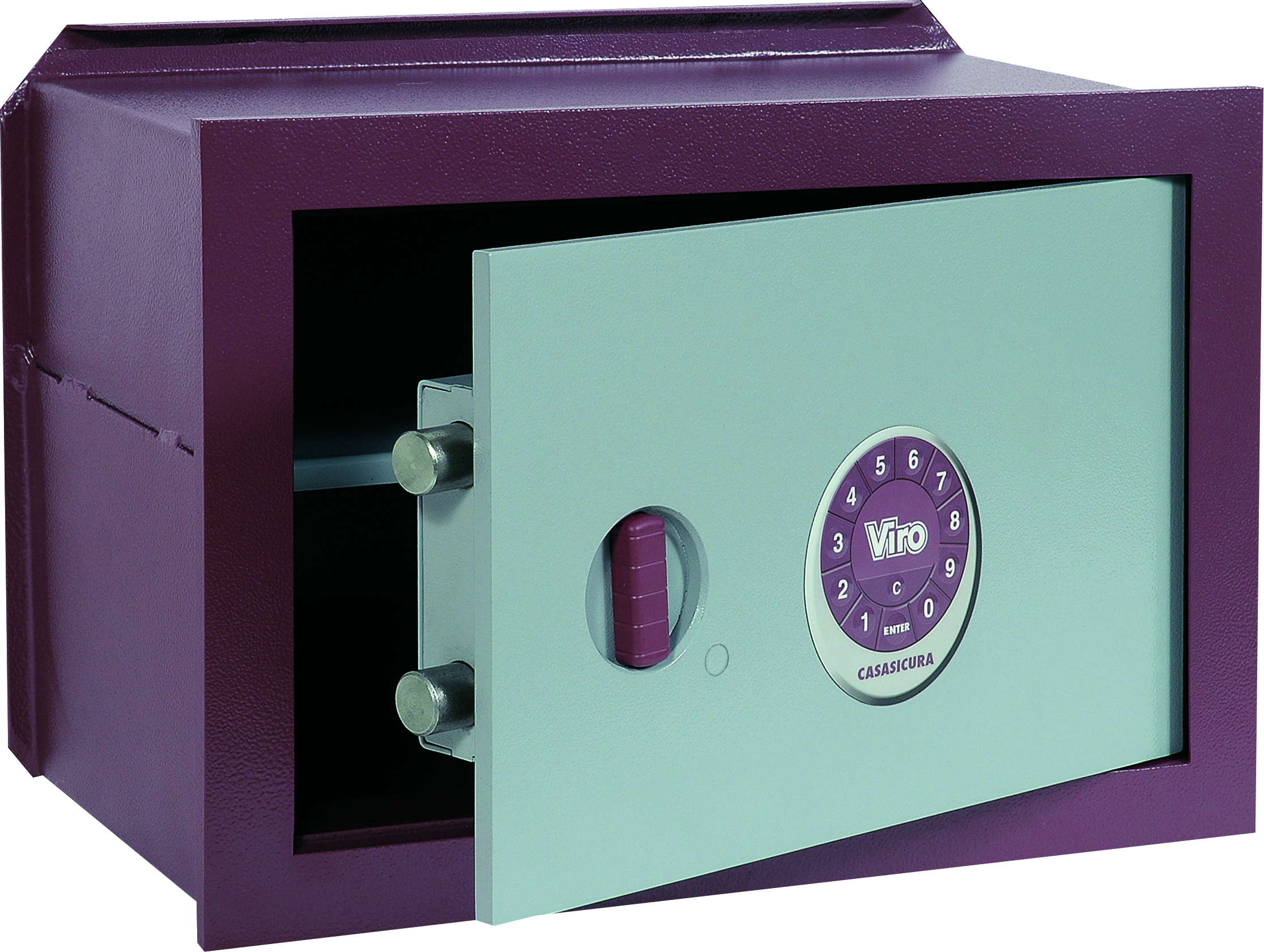

HORIZONTAL ELECTRONIC WALL VERSIONS
| Item | External dimensions | Useful internal dimensions | Door clearance | Bottom dimensions | Thickness Frame | Thickness Door | Thickness Case | Dead-bolts Horiz. | Dead-bolts Vert. | Unit weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
No. | mm height x width x depth | mm height x width x depth | mm height x width | mm height x width | mm | mm | mm | No. | No. | kg | |
 4573.20 | 240 x 360 x 200 | 222 x 342 x 148 | 180 x 300 | 268 x 380 | 10 | 8 | 2 | 2 | - | 14,4 | |
| 4576.20 | 270 x 390 x 200 | 252 x 372 x 148 | 210 x 330 | 298 x 410 | 10 | 8 | 2 | 2 | - | 17 | |
| 4574.20 | 300 x 420 x 200 | 282 x 402 x 148 | 240 x 360 | 328 x 440 | 10 | 8 | 2 | 2 | - | 19 | |
| 4575.25 | 360 x 490 x 250 | 342 x 472 x 198 | 300 x 430 | 388 x 510 | 10 | 8 | 2 | 2 | 2 | 27,8 |
