Accessories for up and over doors locks
E.g. fitting on up and over door of armoured lock (item 8217) with internal protection plate.
- On request (for all up and over doors locks):
- galvanized steel rods, telescopic, adjustable and extensible from 88 cm to 165 cm with related accessories;
- pair of grip handles with an 8 mm handle hole for installation on up-and-over doors with a thickness of up to 15 mm or of between 16 and 40 mm;
- internal protection plate, 2 mm thick, in case-hardened, tempered and galvanized steel, suitable for all types of locks available on the market, both with a european profile cylinder, and with a round cylinder;
- 4-way switch, to increase the number of locking points, from 4 to 6 or 8 (with two switch):
- standard operation: 1 rod retracts and 3 expand;
- optional operation: with a simple operation, 2 rods return and 2, opposite to each other, expand;
- kit of case-hardened drill-resistant fixing screws with rounded heads for fixing a 4-way switch;
- adjustable rod (from 42 to 72 cm) that connects the multipoint lock to the switch;
- Floor striker (well) for Viro rods;
- kit (to be combined with the multipoint lock to create a 6-point closure configuration) composed of: 1 switch + 6 adjustable rods + 1 connection rod + 1 floor striker + 1 fixing screw kit.
- On request (only for multipoint locks to be armoured):
- security escutcheon and cover plates (item consisting of):
- one pull-resistant and drill-resistant security escutcheon, made from carbonitrided, galvanized steel for a special black anticorrosion treatment: (for mounting directly on the outside of sufficiently thick sheet metal or wooden up-and-over doors).
- one galvanized steel ring nut with a special black anticorrosion treatment (for mounting under the escutcheon on the outside of thin up-and-over doors);
- burglar and drill-resistant, case-hardened, tempered, copper, nickel and chrome-plated steel rotating plate. Plate with opening suitable for any profile type and key shape. 5 mm of adjustment for adaptation to the cylinder projection;
- inner reinforcement plate made of galvanized steel (2 mm thick) for fixing the escutcheon, and prevent the sheet metal from deforming;
- galvanized steel outer plate with a special black anticorrosion treatment (with a centre distance between 60 and 70 mm) used to cover the existing holes, with 4 threaded pins (M5x70 mm) welded on the inner side (so that the fixing point are invisible from the outside) for fastening the lock on doors with a thickness up to 40 mm;
- screws and washers for fixing the escutcheon from the inside;
- black nylon escutcheon.
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/asta_1.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/asta_2.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/8217.600_COPPIA_MANIGLIE_15mm.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/8217.600.4_COPPIA_MANIGLIE_40mm.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/1.8234.0465_PIASTRA_DI_PROTEZIONE.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/DEVIATORE-A-4-VIE.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/Viti-1.8234.0740.D.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/Viti-1.8234.0028.D.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/Bocchetta-8217.0069.jpg)
ACCESSORIES On request (for all up and over doors locks):
Item | Description | Unit weight | |
---|---|---|---|
No. | g | ||
![]() | Single tubular rod | 720 | |
![]() | Pair of tubular rods | 1490 | |
![]() | Pair of grip handles (up to 15 mm of thickness) | 190 | |
![]() | Pair of grip handles (up to 40 mm of thickness) | 210 | |
![]() | Internal protection plate | 1400 | |
![]() | 4-way switch | 635 | |
![]() | Switch fixing screws kit | 60 | |
![]() | Connection rods | 250 | |
![]() | Foor striker | 20 | |
![]() | Switch kit + 6 rods + accessories | - |
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/DT-806.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/806-172-NERO.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/1.8234-CON-ROSETTA-DI-SICUREZZA-E-PIASTRA-NERO.jpg)
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/ART_4706.065.jpg)
ACCESSORIES On request (only for multipoint locks to be armoured):
Item | Description | Unit weight | |
---|---|---|---|
No. | g | ||
![]() | Security escutcheon and cover plates | 990 | |
![]() | Nylon escutcheon | 10 |
outside - inside
![](../../../assets/6-SERRATURE_PER_SERRANDA_E_BASCULANTI/ACCESSORI_PER_PORTE_BASCULANTI/Esp1.8234.4BIG.jpg)

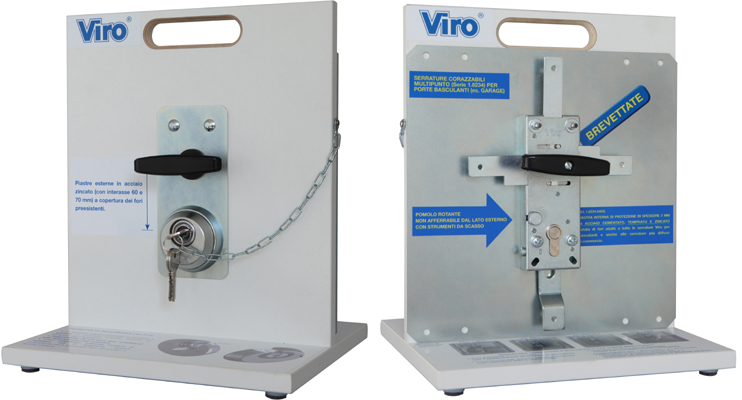

MERCHANDISER FOR 1.8234.4 MULTIPOINT LOCK
Item | Description | Dimensions | Unit weight | |
---|---|---|---|---|
No. | H x W x D cm | g | ||
![]() | Display for multipoint lock (1.8234.4) with inner protection plate (1.8234.0465), switch (1.8234.D) and escutcheon (806.172) | 36x30x28 | 7500 |
