V85 - security - for indoors

The V85 electric locks are suitable for all inside doors and pedestrian entry doors. The three locking points (dead-bolts and roads) provide considerable resistance to attack. The characteristics and finish make them ideal for wooden doors and entry doors.

FEATURES

Installation:
horizontal.
Backset:
65 mm.
Replaceable coil:
reliable and long-lasting.
Voltage:
12V AC
Case:
one-piece painted steel.
Cover:
rear cover, galvanized steel.
Latch:
nickel-plated zamak, self-locking with the device locked.
Dead-bolts:
4 nickel-plated steel, double throw (projection 38mm) on the latch sides.
Rods:
painted steel, tubular extendable from 78 cm to 145 cm.
Ejector:
nickel-plated zamak, below the latch.
Push button:
nylon, sliding.
Cylinder:
fixed, 60 mm, steel.
Keys:
supplied with 3 bronze-plated brass pump keys.
Mechanism:
- with the dead-bolts inserted (3 locking points) the lock can only be opened with the key;
- galvanized steel locking points for vertical rod fitting;
- pump cylinder.
Striker:
painted steel. Self-lubricating nylon support in contact with the ejector.
Supplied with:
painted steel striker, rods for vertical closing, painted steel U-bolt and rod guides, nickel-plated zamak floor striker, cable for electrical connection already attached to the lock, chrome-plated steel cylinder guide (for versions with pump cylinder), nickel-plated steel external escutcheon and fixing screws.
Packaging:
single box.

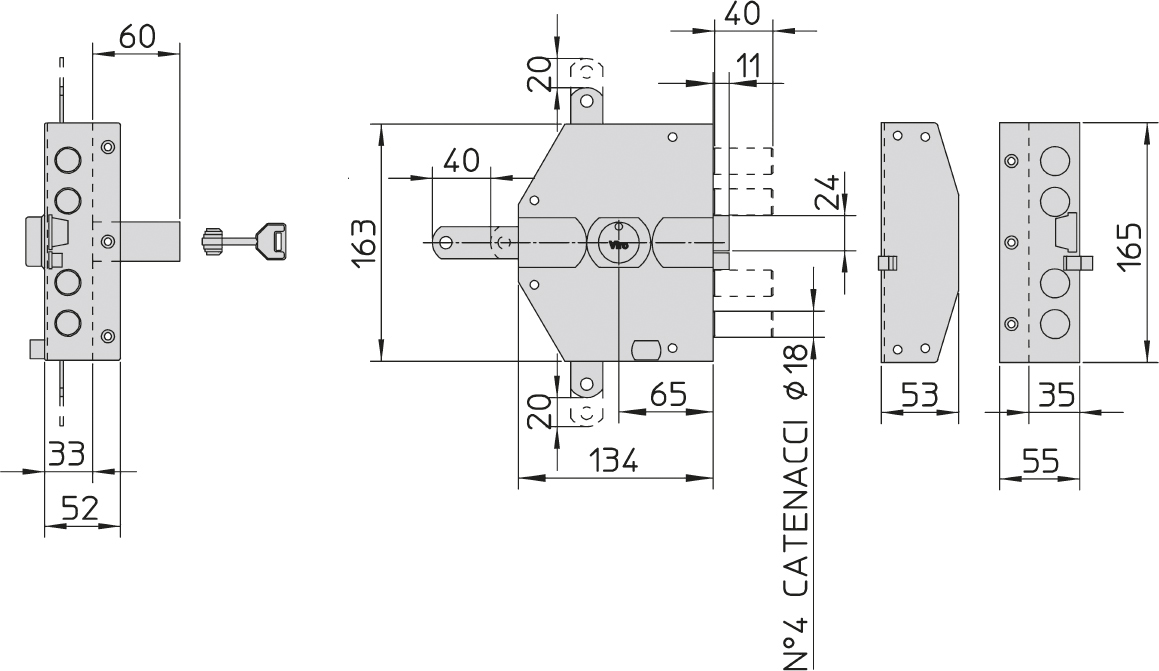

Data sheet

LOCKS WITH PUMP CYLINDER (supplied with cylinder 60 mm)

	Item	Description	double throw	Keys	Unit weight
	No.		No.	ITEM NO.	g
	7944	3 locking points complete with rods	2	043	4645

The item code should be followed by the code for the required version (.1 = right .2 = left) e.g. 7944.1 = V85 with pump key, right-hand.

SPARE PARTS AND ACCESSORIES

	Item	Description
	No.
	971	60 mm plate-mounted pump cylinder
	2.0.9810.069.00.000.A	Foor striker
	7910	12V AC coil
